PDL Resi9 MeterBoard 2 Row 18 Module Deep Flush 100A
The PDL Resi9 R9HMB218FD Meter Board is a deep flush-mounted metal enclosure designed for residential electrical distribution and metering applications.
It features 2 horizontal rows with 18 x 18mm modules per row, providing a total capacity of 36 modules
Warranty: 18months
https://www.pdl.co.nz/products/circuit-protection/resi9/meter-board-2-rows-18-modules-deep-flush-100a-r9hmb218fd?itemno=R9HMB218FD
$316.00
Guaranteed Safe Checkout
Features & Compatibility
The PDL Resi9 R9HMB218FD Meter Board is a deep flush-mounted metal enclosure designed for residential electrical distribution and metering applications. It features 2 horizontal rows with 18 x 18mm modules per row, providing a total capacity of 36 modules.
Rated at 100A with a 230/400V AC operational voltage, the R9HMB218FD is designed to provide a practical enclosure solution for residential switchboard and meter board installations. It includes two DIN rails, an earthing bar, six neutral bars, comb busbars, a neutral splitter, removable meter panel and other installation accessories.
The deep flush mounting configuration provides additional space around and behind the DIN rails for wiring and cable management. The flat reversible door allows flexibility for left- or right-hand opening, while the enclosure can accommodate different installation orientations.
The enclosure is manufactured from mild steel, finished in white RAL 9003 satin, and is specifically targeted at the New Zealand residential market. It measures 406mm wide × 856mm high × 165mm deep.
Key Features
- PDL Resi9 meter board
- Product code: R9HMB218FD
- 2 horizontal rows
- 18 modules per row
- 36 total 18mm modules
- 36-way capacity
- 100A rated current
- Rated operational voltage: 230/400V AC
- Rated insulation voltage: 500V
- Deep flush mounting
- 2 DIN rails
- Flat reversible door
- Removable meter panel
- Earthing bar included
- Six neutral bars included
- Neutral splitter included
- Comb busbars included
- End caps and pole fillers included
- Knock-out cable entries at top, bottom and sides
- Mild steel enclosure
- White RAL 9003 satin finish
- IP2X protection
- IK07 impact protection
- Suitable for residential electrical installations
- Targeted for the New Zealand market

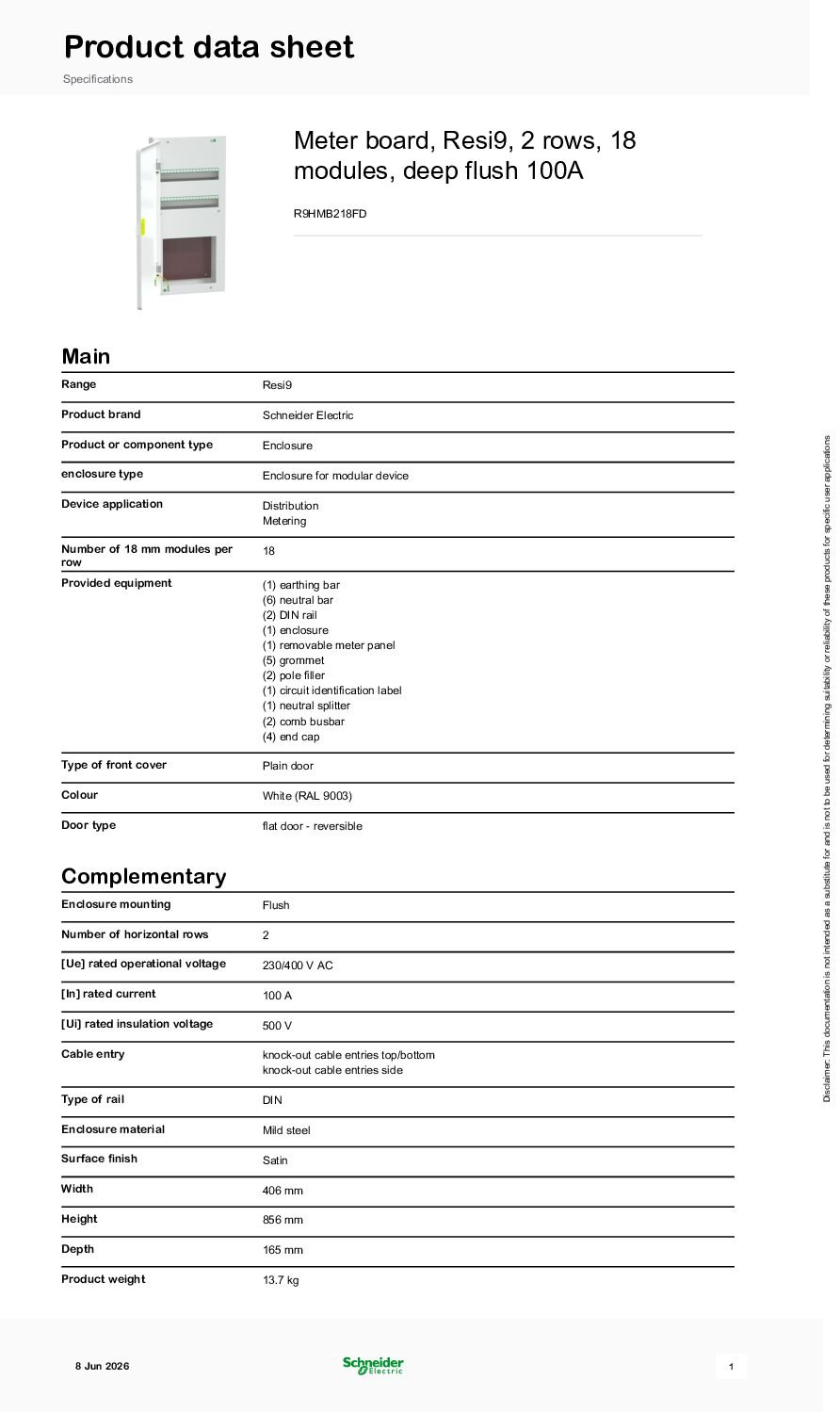

Technical Specifications
| Specification | Details |
|---|---|
| Brand | PDL / Schneider Electric |
| Range | Resi9 |
| Product Code | R9HMB218FD |
| Product Type | Meter Board / Enclosure |
| Application | Distribution & Metering |
| Mounting | Deep Flush |
| Rows | 2 |
| Modules per Row | 18 |
| Total Modules | 36 |
| Number of Ways | 36 |
| Module Size | 18mm |
| Rated Current | 100A |
| Rated Operational Voltage | 230/400V AC |
| Rated Insulation Voltage | 500V |
| DIN Rails | 2 |
| Enclosure Material | Mild Steel |
| Colour | White RAL 9003 |
| Finish | Satin |
| Door | Flat, Reversible |
| Cable Entry | Top, Bottom & Side Knock-outs |
| IP Rating | IP2X |
| IK Rating | IK07 |
| Width | 406mm |
| Height | 856mm |
| Depth | 165mm |
| Net Weight | 13.7kg |
| Target Market | New Zealand Residential |
| Warranty | 18 months |
Specifications are based on the current PDL/Schneider Electric product information.
What’s Included
- 1 × Resi9 enclosure
- 2 × DIN rails
- 1 × Earthing bar
- 6 × Neutral bars
- 1 × Removable meter panel
- 5 × Grommets
- 2 × Pole fillers
- 1 × Circuit identification label
- 1 × Neutral splitter
- 2 × Comb busbars
- 4 × End caps
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 40.6 × 85.6 × 16.5 cm |
