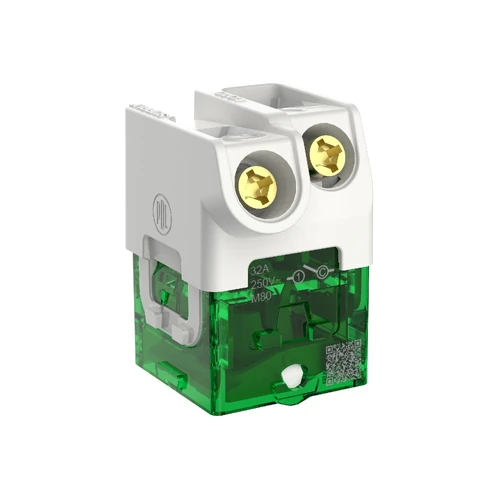

PDL380M32-VW PDL Iconic 32A 1-Way Module Switch – Vivid White

The PDL380M32-VW PDL Iconic 32A 1-Way Module Switch is a robust and reliable switching mechanism designed for controlling cooking appliances, lighting and small motor loads in residential and commercial electrical installations. Part of the trusted PDL Iconic 300 Series, this Vivid White module switch provides a practical solution where higher current switching is required.

With a 32A rated current and 250V rated operational voltage, the PDL380M32-VW is designed for 1-way switching and features a single rocker actuator. It is suitable for applications including cooking appliances, electrical equipment and other appropriate loads requiring reliable local switching control.

The PDL Iconic mechanism has a compact design measuring just 23mm wide × 23mm high × 32mm deep, making it suitable for integration into compatible PDL Iconic assemblies. Its Vivid White finish and modern rocker design complement the wider PDL Iconic range. The mechanism is designed for flush mounting and is secured using clipping locks.

For professional electrical installations, the PDL380M32-VW features screw terminals, two terminals and a clamping connection capacity of up to 2.5mm² for stranded cable. The mechanism has an electrical durability of 5,000 cycles conforming to AS/NZS 60669 and carries RCM certification.

Key Features

• Genuine PDL Iconic module switch
• Model: PDL380M32-VW
• 32A rated current
• 250V rated operational voltage
• 1-way switching
• Single rocker actuator
• Vivid White finish
• Suitable for lighting and appliance applications
• Designed for cooking appliances and small motor loads
• Flush mounting
• Screw terminals
• Two terminals
• Clamping capacity: 2.5mm² stranded cable
• Clipping-lock fixing
• Electrical durability: 5,000 cycles
• RCM certified
• Dimensions: 23mm W × 23mm H × 32mm D
• Net weight: approximately 16g
• PDL Iconic 300 Series mechanism

Suitable Applications

The PDL380M32-VW is suitable for professional electrical applications requiring a 32A 1-way switch mechanism, including:

• Cooking appliances
• Electrical appliances
• Small motor loads
• Lighting applications
• Residential electrical installations
• Commercial electrical installations
• Renovation and replacement projects

Always ensure the product is installed by a suitably qualified electrical professional and used within its specified ratings.

Why Choose PDL380M32-VW?

The PDL380M32-VW PDL Iconic 32A Module Switch is an excellent choice when a compact, higher-current 1-way switching mechanism is required. Its 32A rating, screw terminals, durable electromechanical construction and RCM certification make it a practical option for electricians working on residential and commercial electrical installations.

Its compact module format also makes it ideal for use within compatible PDL Iconic 300 Series assemblies, providing flexibility when creating or replacing switching configurations.

Warranty

The PDL380M32-VW comes with an 18-month manufacturer’s warranty, subject to the manufacturer’s warranty terms and conditions.
