Manrose 150mm White Exhaust Fan
The Manrose FAN0120 XF150S is a powerful 150mm wall or ceiling mounted axial exhaust fan designed for bathrooms, toilets, laundries and general residential ventilation. With up to 364m³/hr free-air airflow, a reliable ball-bearing motor and IPX4 protection, it provides effective ventilation for a wide range of applications
$139.00
Guaranteed Safe Checkout
Features & Compatibility
Manrose FAN0120 XF150S 150mm Wall/Ceiling Exhaust Fan
The Manrose FAN0120 XF150S is a reliable and high-performance 150mm wall/ceiling exhaust fan designed for residential ventilation applications.
Featuring a powerful axial fan design, the XF150S delivers up to 101 L/s or 364m³/hr free-air airflow, making it suitable for bathrooms, ensuites, toilets, laundries, kitchens and other areas requiring effective air extraction.
The fan uses a ball-bearing motor designed for reliable operation and long service life. Its standard switching configuration allows the fan to be controlled by a separate wall switch, giving installers flexibility during installation.
The 150mm duct size makes the FAN0120 a suitable option where higher airflow is required compared with smaller 100mm and 125mm residential exhaust fans.
Key Features
- 150mm duct size
- 101 L/s airflow
- Up to 364m³/hr free-air performance
- 60Pa maximum pressure
- 25W maximum power
- 40dB(A) sound level
- IPX4 rated
- Reliable ball-bearing motor
- Axial fan design
- Wall or ceiling mounting
- Standard remote switching
- Remote switch not supplied
- White square fascia
- Suitable for residential ventilation
- Model: XF150S
- Order code: FAN0120
- 5-year warranty
Powerful 150mm Residential Exhaust Fan
The FAN0120 XF150S provides significantly higher airflow than smaller residential exhaust fans, with a free-air performance of up to 364m³/hr.
Its 150mm duct configuration makes it particularly suitable for applications where effective extraction is required, including bathrooms, ensuites, laundries and kitchens. Manrose’s selection guide includes the FAN0120 among its recommended 150mm wall/ceiling fans for these residential applications.
Reliable Ball-Bearing Motor
The Manrose Classic XF Series uses ball-bearing motors designed to provide reliable performance and help extend motor service life.
This makes the FAN0120 a practical choice for residential ventilation systems requiring regular and dependable operation.
Standard Switching
The FAN0120 XF150S is the standard switching version.
The fan is designed to operate using a separate remote switch, which is not supplied with the fan. This allows the installer or electrician to select a suitable switching arrangement for the installation.
Manrose also offers other 150mm Classic fan configurations, including pull-cord, timer and PIR versions.
IPX4 Protection
The FAN0120 has an IPX4 rating, providing protection against water splashes and making it suitable for appropriate bathroom and other residential ventilation installations.
Installation should always be completed according to the manufacturer’s instructions and applicable New Zealand electrical requirements.
Wall or Ceiling Mounting
The Manrose XF150S can be installed on either a wall or ceiling, providing flexibility for different ventilation layouts.
For external-wall installations, the appropriate external grille and ducting arrangement should be used to complete the ventilation system.
Ideal Applications
The Manrose FAN0120 is suitable for:
- Bathrooms
- Ensuites
- Toilets
- Laundries
- Kitchens
- Utility rooms
- Residential ventilation
- General air extraction
- Wall-mounted ventilation
- Ceiling-mounted ventilation
- Moisture extraction
- Stale-air removal

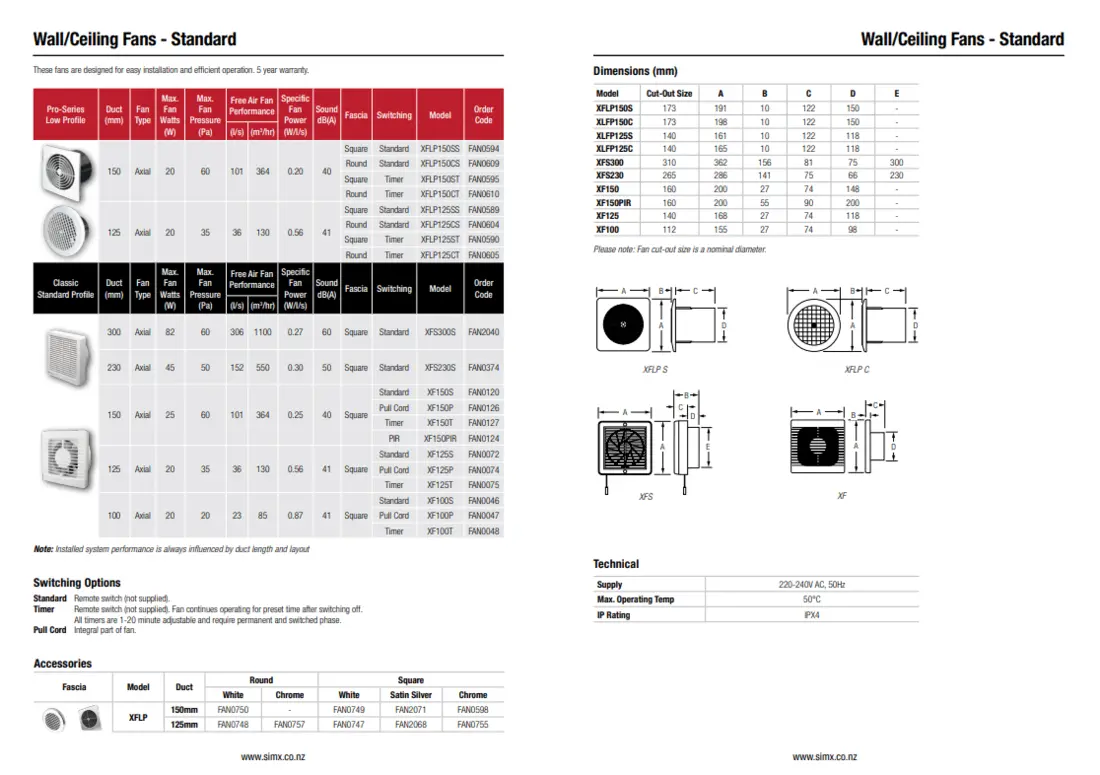

Specifications
| Specification | Details |
|---|---|
| Brand | Manrose |
| Model | XF150S |
| Order Code | FAN0120 |
| Product Type | Wall/Ceiling Exhaust Fan |
| Fan Type | Axial |
| Duct Size | 150mm |
| Airflow | 101 L/s |
| Free-Air Performance | 364m³/hr |
| Maximum Pressure | 60Pa |
| Maximum Power | 25W |
| Sound Level | 40dB(A) |
| Voltage | 220–240V AC |
| IP Rating | IPX4 |
| Motor | Ball Bearing |
| Switching | Standard / Remote Switch |
| Mounting | Wall or Ceiling |
| Fascia | Square / White |
| Warranty | 5 Years |
Manufacturer airflow figures are stated as free-air performance. Actual installed airflow will depend on duct length, bends, grilles and overall system resistance.
Why Choose the Manrose FAN0120?
The Manrose FAN0120 combines a 150mm duct size with high airflow performance, making it a strong choice for residential ventilation where greater extraction capacity is required.
With 364m³/hr free-air airflow, a durable ball-bearing motor, IPX4 protection and wall or ceiling mounting options, the XF150S provides a straightforward ventilation solution for bathrooms, laundries, kitchens and other residential areas.
Buy Manrose FAN0120 in New Zealand
Looking for a 150mm wall/ceiling exhaust fan in New Zealand? The Manrose FAN0120 XF150S provides up to 364m³/hr free-air airflow, a reliable ball-bearing motor, IPX4 protection and flexible wall or ceiling installation.
Order the Manrose FAN0120 150mm Wall/Ceiling Exhaust Fan from Trade Haven for bathroom, ensuite, laundry, kitchen and residential ventilation applications.
